PEB Roofing & Wall Cladding
Hi-Rib Cladding System

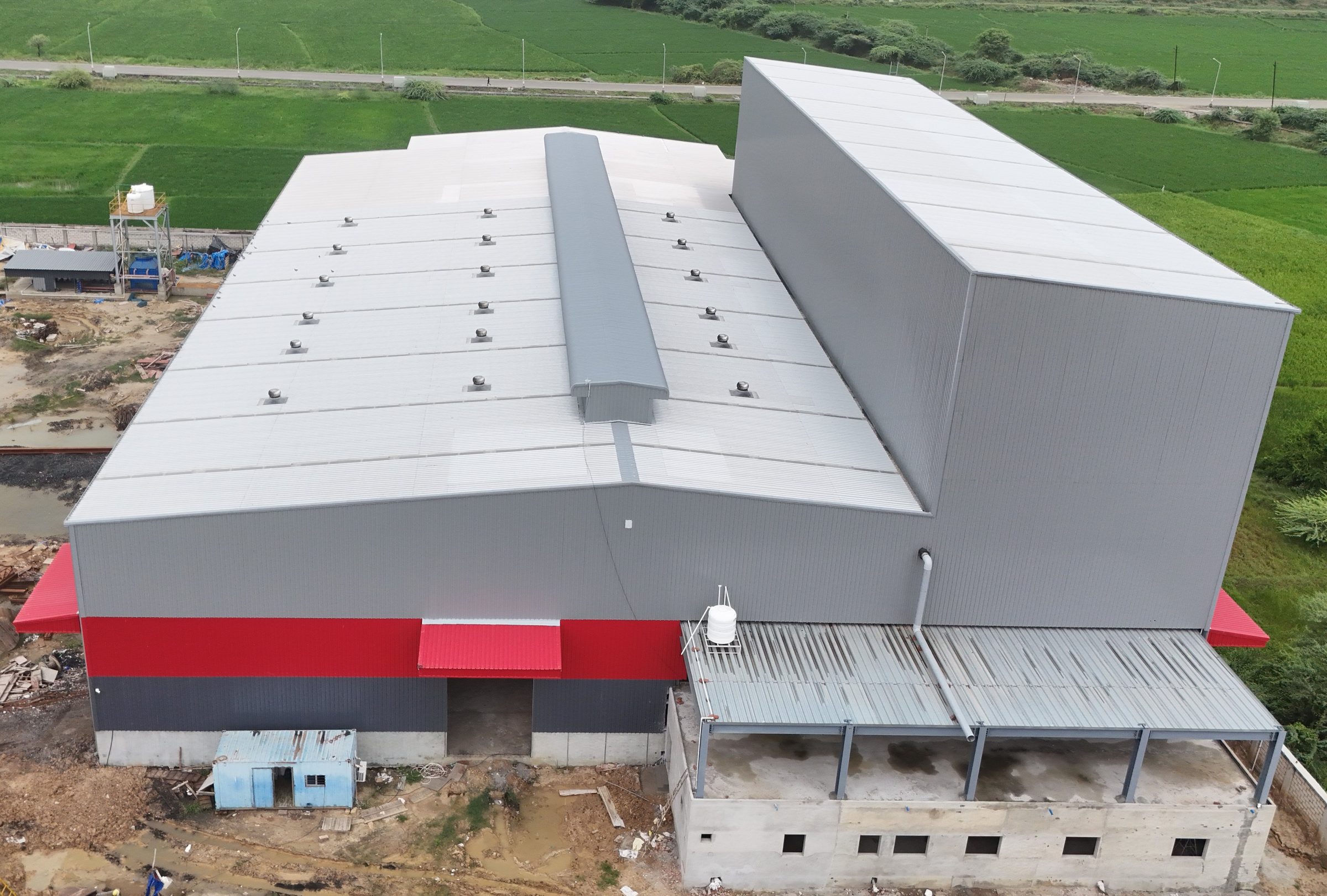

Roofing
AcuFabInfraStructure's Hi-Rib roof and wall cladding system is available in the following base material in standard execution: high-tensile, cold-rolled Galvalume steel 345/550 as per AS 1397, with an AZ150 (150 g/m²) zinc-aluminium alloy coating mass (total of both sides) and 550/345 MPa yield strength conforming to AS 1397.
Roof sheeting is 0.47 mm thick Hi-Rib bare Galvalume, and wall cladding is 0.50 mm thick Hi-Rib colour-coated Galvalume.
Hi-Rib Sheet Profile
- Input Width
- 1220 mm
- Supply Width
- 1072 mm
- Effective Width
- 1015 mm
- Pitch
- 203 mm
- Crest Height
- 28.5 mm
Available in (1) colour-coated galvanised (0.50 to 0.80 mm), (2) colour-coated Galvalume (0.45 to 0.80 mm) and (3) bare Galvalume (0.40 to 0.80 mm).
